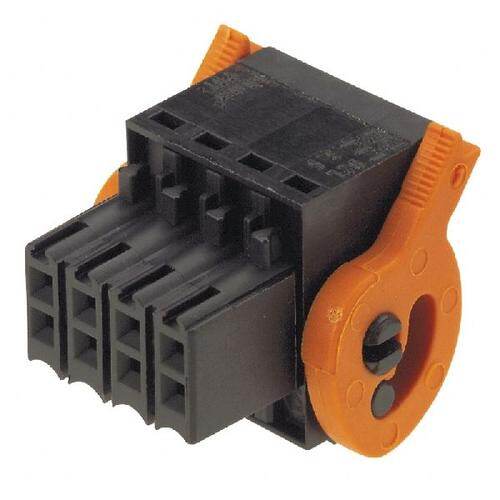

1748630000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Terminal Block SKT 34 POS 3.5mm Crimp ST Cable Mount 10A Box
PDF
/
Inventory: 3382
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2009
Series Omnimate B2L
Feature Ejector Latches
Pbfree Code yes
Part Status Obsolete
Termination Crimp
Type Plug, Female Sockets
Number of Positions 34
Color Black
Number of Rows 2
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.138 3.50mm
Total Number of Contacts 34
Orientation Straight
Ingress Protection IP20
Depth 21.6mm
Insulation Height 0.618 15.70mm
Termination Style Screwless - Spring Cage, Tension Clamp
UL Flammability Code 94V-0
Insulation Resistance 1MOhm
Voltage 150V
Max Supply Voltage 300V
Max Current Rating 10A
Number of Levels 2
Current 10A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 18 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-28 AWG
Voltage - IEC 250V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1mm2
Wire Strip Length 7mm
Current - IEC 10.3A
Number of Positions Per Level 17
Dimensions
Length 66.5mm
Width 15.6mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
