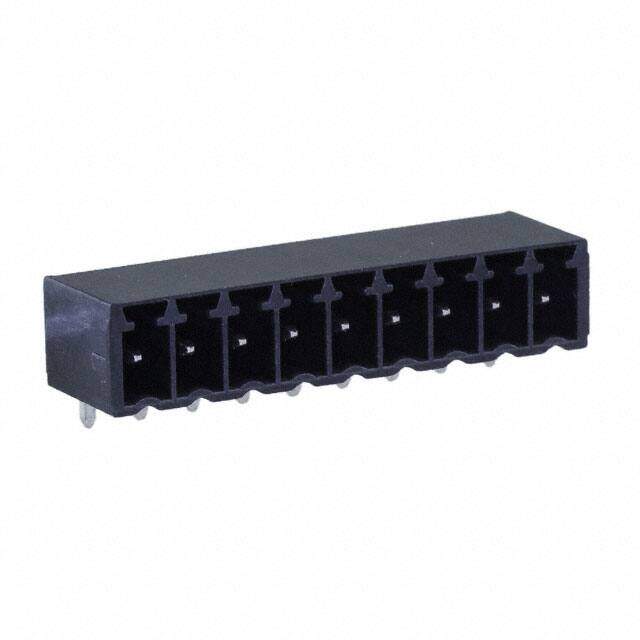

1788644
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 9POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $3.36
Unit Price: USD $3.3616
≥1 USD $3.3616
≥10 USD $3.27096
≥100 USD $3.05712
≥500 USD $2.812568
≥1000 USD $2.759997
Inventory: 116
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2014
Series COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Voltage - Rated 250V
Pitch 0.138 3.50mm
Insulation Height 0.272 6.91mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Header Orientation 90°, Right Angle
Number of Positions Per Level 9
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
