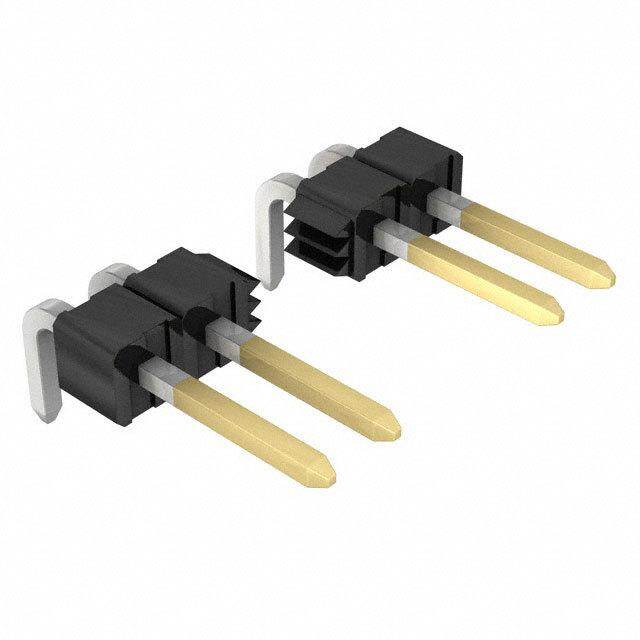

22-28-8264
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings HEADER 26POS .100 R/A GOLD
PDF
/
Inventory: 9171
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Plating Thickness 30μin
Technical
Contact Pattern RECTANGULAR
Durability 25 Cycles
Polarization Key POLAR PIN POSITION
Body/Shell Style RECEPTACLE
Insulation Resistance 50000000000Ohm
Contact Resistance 20mOhm
Contact Style SQ PIN-SKT
UL Flammability Code 94V-0
Body Breadth 0.098 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Max) 75°C
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 6.1976mm
Number of Contacts 26
Number Of PCB Rows 1
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Current Rating 4A
Reach Compliance Code unknown
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature MATING LENGTH=0.244 INCHES
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Black
Connector Type Male Pin
ECCN Code EAR99
Termination Solder
Pbfree Code yes
JESD-609 Code e3
Published 2007
Packaging Bulk
Physical
Housing Material Nylon
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
