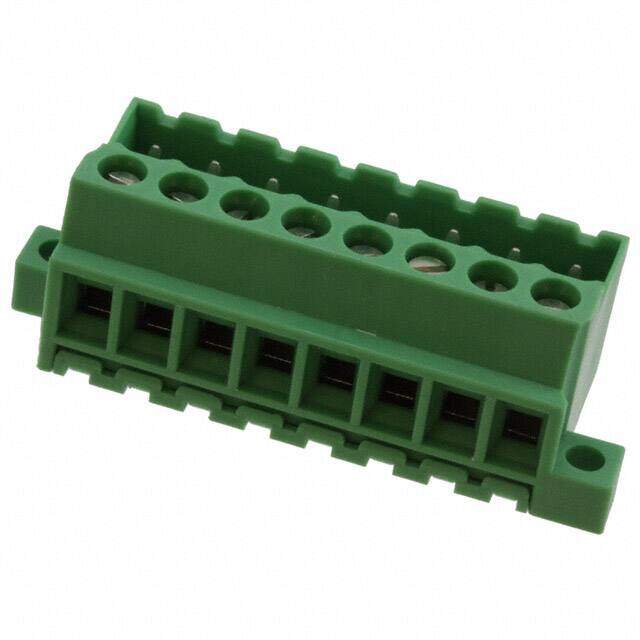

1788596 image
Favorite
1788596 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Terminal Blocks HDR 8 POS 5.08mm Screw ST Panel Mount 12A
PDF
/
Buying Options
Total Price: USD $11.78
Unit Price: USD $11.7832
≥1 USD $11.7832
≥10 USD $11.46552
≥100 USD $10.71576
≥500 USD $9.858552
≥1000 USD $9.673946
Inventory: 174
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 17.3mm
Length 51.96mm
Height 20.4mm

Technical

Wire Cross Section 2.5 mm2
Screw Size M3
Number of Positions Per Level 8
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Safety Approval UL
Number of Ways 8
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 320V
Voltage 300V
Approval Agency CB, CSA, UL, VDE
Termination Style Screw
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.681 17.30mm
Depth 20.4mm
Orientation Straight
Pitch 0.200 5.08mm
Additional Feature PA, 94V-2
Voltage - Rated 320V
Gender Female
Number of Rows 1
Color Green
Type Receptacle, Male Pins
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mounting Flange
Series COMBICON MVSTBU
Published 2003
Packaging Bulk

Physical

Weight 206.999996g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Board Mount
Mount Cable
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
