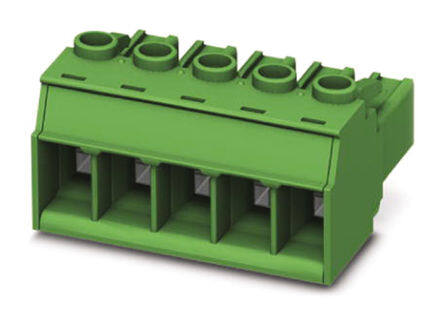

1777794
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 7.62mm pitch Plug 24-8 AWG Screw
PDF
/
Buying Options
Total Price: USD $40.21
Unit Price: USD $40.210188
≥1 USD $40.210188
≥200 USD $16.044951
≥500 USD $15.507975
≥1000 USD $15.244082
Inventory: 1466
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 68.53mm
Length 35.5mm
Height 35.3mm
Technical
Screw Size M3
Number of Positions Per Level 9
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-10mm2
Plug Wire Entry 180°
Torque - Screw 0.5-0.8 Nm (4.4-7.1 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 8-24 AWG
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 8 AWG
Current 41A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 41A
Reach Compliance Code not_compliant
Insulation Height 0.776 19.70mm
Depth 19.7mm
Pitch 0.300 7.62mm
Voltage - Rated 1kV
Gender Female
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series COMBICON PC
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
