12-08PMMS-SF8001
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

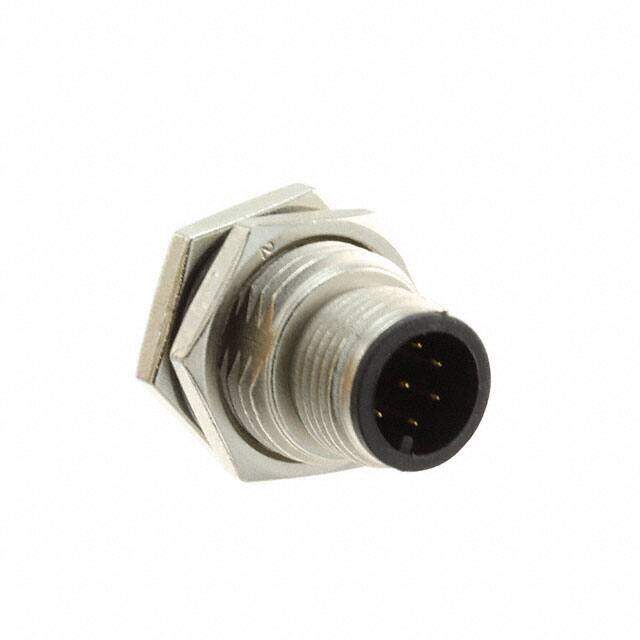

AMPHENOL LTW 12-08PMMS-SF8001 M12 I-STYLE SENSOR CONNECTOR
PDF
/
Inventory: 4380
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP68, Waterproof
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Technical
Shell Size - Insert M12-8
Shell Finish Nickel
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Current Rating (Amps) 2A
Contact Finish - Mating Gold
Fastening Type Threaded
Color Silver
Number of Positions 8
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series M
Published 2012
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Insert Material Polyamide (PA), Nylon, Glass Filled
Shell Material Zinc Alloy
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel
Contact Material Copper Alloy
