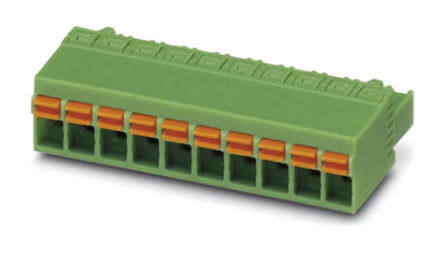

1754636
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 5.08mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $10.62
Unit Price: USD $10.621254
≥1 USD $10.621254
≥10 USD $10.020055
≥100 USD $9.452876
≥500 USD $8.917812
≥1000 USD $8.413029
Inventory: 4707
Minimum: 1
-
+
Technical Details
Physical
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Technical
Packaging Bulk
Published 2011
Series COMBICON FKCN
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 320V
Pitch 0.200 5.08mm
Insulation Height 0.429 10.90mm
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 14-24 AWG
Voltage - IEC 630V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 9
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Supply Chain
Factory Lead Time 4 Weeks
