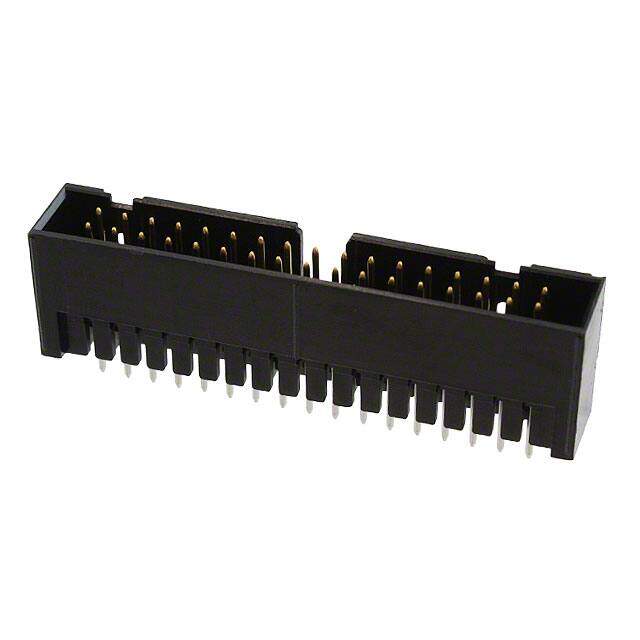

3-827745-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 34POS VERT .100 GOLD
PDF
/
Inventory: 5876
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Round
Housing Material Thermoplastic
Technical
Packaging Bulk
Published 2008
Series AMP-Latch
JESD-609 Code e3
Feature Keying Slot, Mounting Flange
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 34
Number of Rows 2
HTS Code 8536.69.40.40
Contact Finish - Mating Gold or Gold-Palladium
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 34
Orientation Vertical
Depth 8.8mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 105°C
Contact Gender Male
Operating Temperature (Min) -65°C
UL Flammability Code 94V-0
Lead Length 3mm
Rated Current (Signal) 1A
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
ELV Compliant
Polarization Key CTR W/GUIDE SLOTS
Dielectric Withstanding Voltage 1000VAC V
Dimensions
Length 49.8mm
Plating Thickness 31μin
Contact Finish Thickness - Mating 31.5μin 0.80μm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
