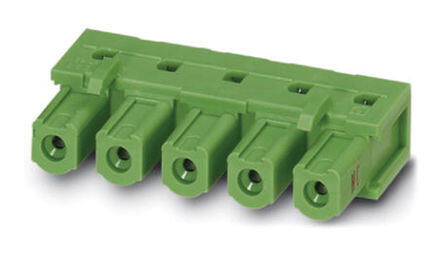

1745865
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 10 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $11.21
Unit Price: USD $11.207642
≥1 USD $11.207642
≥10 USD $10.573246
≥100 USD $9.974756
≥500 USD $9.410145
≥1000 USD $8.877504
Inventory: 7343
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 8.599998g
Technical
Packaging Bulk
Published 2011
Series COMBICON GIC
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 630V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Insulation Height 0.402 10.20mm
Current Rating 16A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 10
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 16A
Number of Positions Per Level 10
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
