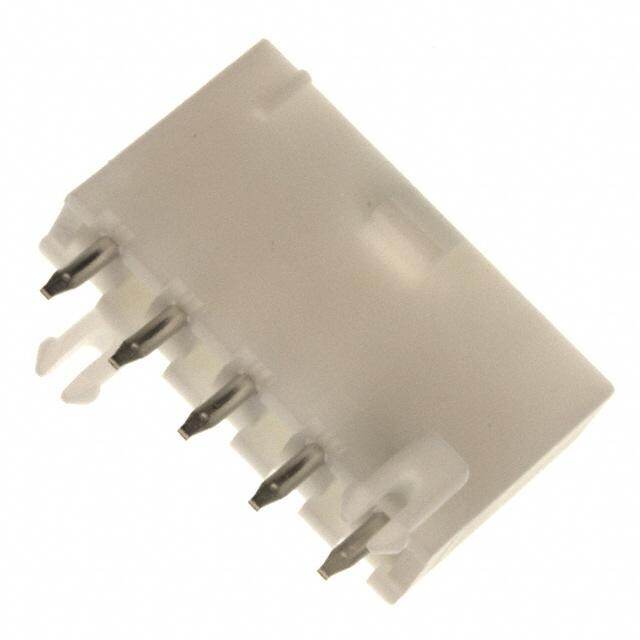

39-30-2058
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
MINI-FIT JR. Male Pin Rectangular Connector
PDF
/
Inventory: 10048
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material BRASS
Mounting Type BOARD
Insulation Material NYLON
Shell Material POLYAMIDE66
Mounting Option 1 POLARIZED LCK
Mounting Style STRAIGHT
Board Mounting Option COMPLIANT BOARDLOCK
Mounting Option 2 LOCKING
Technical
Published 2009
JESD-609 Code e3
Pbfree Code icon-pbfree yes
Part Status Active
ECCN Code EAR99
Connector Type RECTANGULAR POWER CONNECTOR
Number of Rows 1
Additional Feature MINI-FIT JR.
HTS Code 8536.69.40.30
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating GOLD (30) OVER NICKEL
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 5
Terminal Pitch 4.191mm
Reach Compliance Code compliant
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 0.874 inch
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 105°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.213 inch
Contact Gender MALE
Operating Temperature (Min) -40°C
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.504 inch
Rated Current (Signal) 8A
Contact Style SQ PIN-SKT
Contact Resistance 10mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.165 inch
Body/Shell Style PLUG
Termination Type SOLDER
Polarization Key HOUSING SIDE
Dielectric Withstanding Voltage 1500VAC V
Durability 30 Cycles
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Pattern RECTANGULAR
Insertion Force-Max 6.672 N
Withdrawl Force-Min 3.1136 N
Dimensions
Plating Thickness 30u inch
Length - Termination 0.138 inch
Compliance
RoHS Status RoHS Compliant
