RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

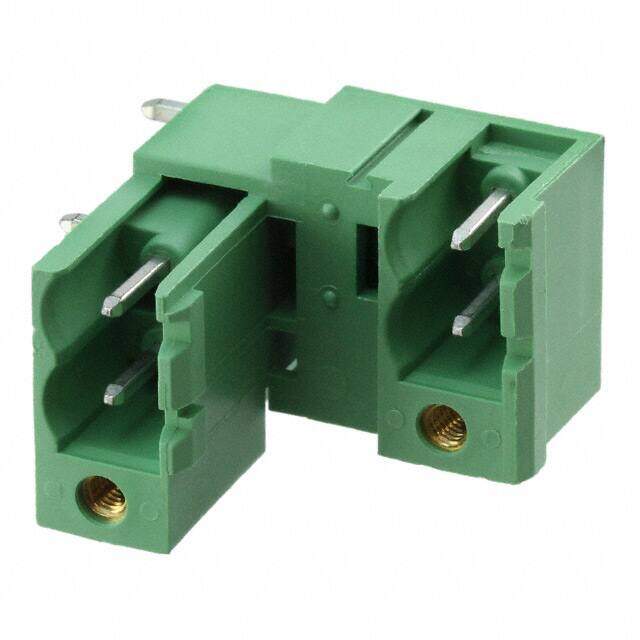

Description Pluggable Terminal Blocks 2 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $6.02
Unit Price: USD $6.0192
≥1 USD $6.0192
≥10 USD $5.85552
≥100 USD $5.47272
≥500 USD $5.03492
≥1000 USD $4.940637
Inventory: 101
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 27.2mm
Length 7.62mm
Height 22.1mm

Technical

Header Orientation 90°, Right Angle
Number of Ways 2
Positions Per Level 2
Voltage - IEC 400V
Number of Decks 1
Current 15A
Max Current Rating 10A
Voltage 300V
Termination Style Solder
Current Rating 10A
Reach Compliance Code unknown
Orientation Right Angle
Pitch 0.200 5.08mm
Additional Feature PBT
Voltage - Rated 250V
Number of Rows 2
Color Green
Number of Positions 4
Type Header, Male Pins, Shrouded (3 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side), Mating Flange
Series COMBICON MDSTB
Published 2010
Packaging Bulk

Physical

Weight 159.000001g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
