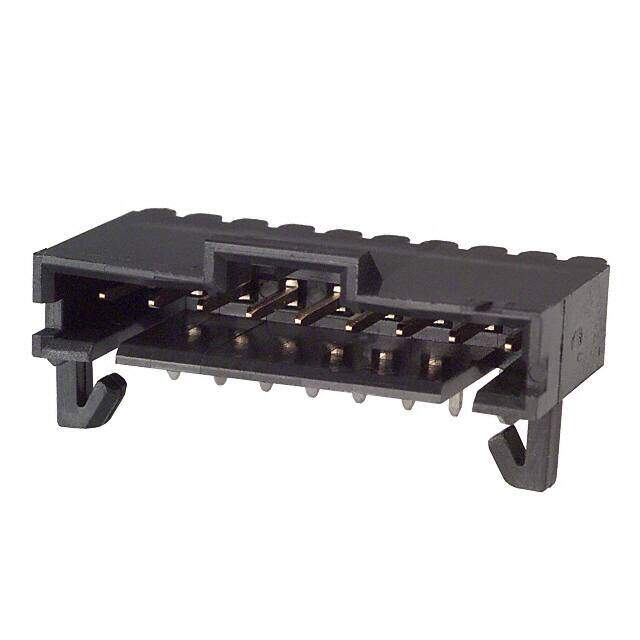

5-103673-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER RT/A .100 9POS 15AU
PDF
/
Buying Options
Total Price: USD $2.05
Unit Price: USD $2.0504
≥1 USD $2.0504
≥10 USD $1.829978
≥100 USD $1.653476
≥500 USD $1.495595
≥1000 USD $1.33767
≥3000 USD $1.179754
Inventory: 1033
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.5748mm
Length - Tail 3.3mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Plating Thickness 2.54μm
Length 25.4mm
Height 13.59mm
Technical
Mating Post Length 5.842mm
Mating Retention With
Contact Current Rating 3A
ELV Compliant
Row Spacing 2.54 mm
Insulation Resistance 5GOhm
Contact Resistance 15mOhm
Contact Length - Mating 0.230 5.84mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Approval Agency CSA
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.200 5.08mm
Depth 13.59mm
Orientation Right Angle
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Holder
Additional Feature POLARIZED
Voltage - Rated 600V
Gender Male
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 9
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Keying Slot
JESD-609 Code e3
Series AMPMODU MTE
Published 2008
Packaging Tube
Operating Temperature -65°C~105°C
Physical
PCB Mount Alignment Without
PCB Mounting Orientation Right Angle
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Tin
Contact Material Brass
