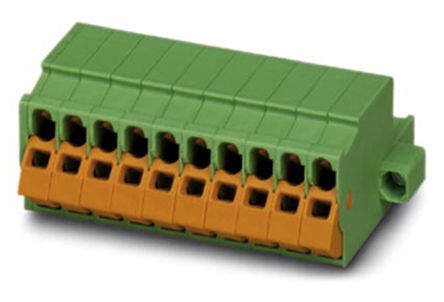

1718122
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
PA 94V-0 Terminal Block Socket
PDF
/
Inventory: 1100
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 12A
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 3
Voltage - IEC 1kV
Wire Gauge or Range - AWG 16-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screwless - IDC
Current Rating 12A
Insulation Height 0.772 19.60mm
Pitch 0.197 5.00mm
Additional Feature PA, 94V-0
Voltage - Rated 500V
Number of Rows 1
Color Green
Number of Positions 3
Type Plug, Female Sockets
Connector Type IDC, IDT
ECCN Code EAR99
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON QC
Published 2010
Packaging Bulk
Physical
Weight 9.978012g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 11 Weeks
