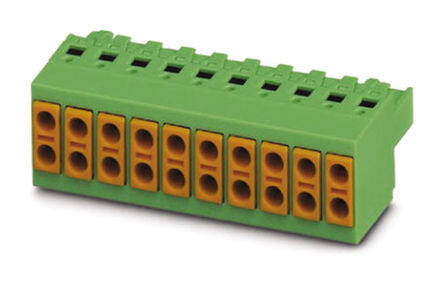

1713868 image
Favorite
1713868 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 5 Pos 5mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $10.28
Unit Price: USD $10.282342
≥1 USD $10.282342
≥10 USD $9.700327
≥100 USD $9.151247
≥500 USD $8.633255
≥1000 USD $8.144585
Inventory: 4840
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 25mm
Length 15mm
Height 23.3mm

Technical

Fastening Method SPRING LOADED
Current - IEC 10A
Wire Strip Length 8mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 5
Positions Per Level 5 (Mate), 10 (Input)
Voltage - IEC 630V
Wire Gauge or Range - AWG 16-24 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 16 AWG
Current 8A
Number of Levels 1 (Mate), 2 (Input)
Voltage 300V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 10A
Insulation Height 0.591 15.00mm
Pitch 0.197 5.00mm
Additional Feature PA, UL 94V-0
Voltage - Rated 250V
Gender Female
Number of Rows 2
Color Green
Number of Positions 5
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON TVFKC
Published 2012
Packaging Bulk

Physical

Weight 1.50003kg
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
