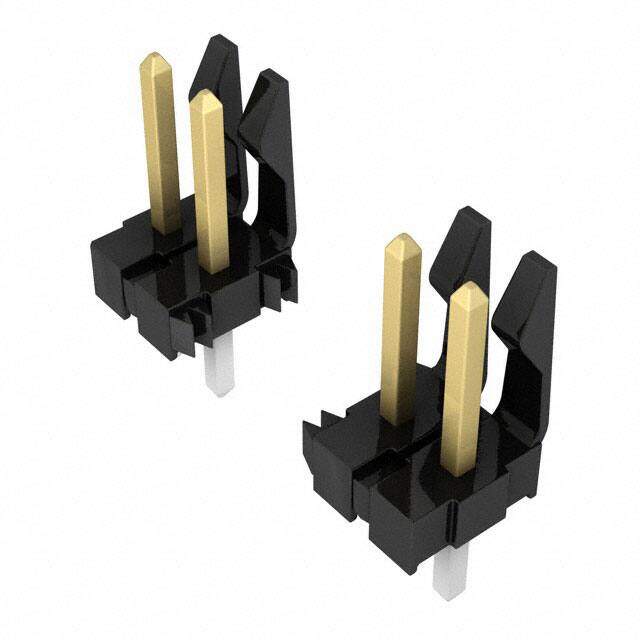

0026482185
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN BKWY HEADER 18POS STR GOLD
PDF
/
Inventory: 5537
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Housing Material Polyester
Technical
Packaging Bulk
Series KK 41671
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 18
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Color Black
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows 1
Gender Male
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Male Pin
Pitch 3.96mm
Orientation Straight
Depth 9.02mm
Insulation Height 0.500 12.70mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.156 3.96mm
Insulation Color Black
Contact Length - Post 0.172 4.37mm
Shrouding Shrouded - 1 Wall
Number of Contacts 18
Contact Finish - Post Tin
Contact Length - Mating 0.450 11.43mm
Housing Color Black
Overall Contact Length 0.750 19.05mm
Contact Resistance 10mOhm
Dimensions
Length 71.27mm
Contact Finish Thickness - Mating 20.0μin 0.51μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
