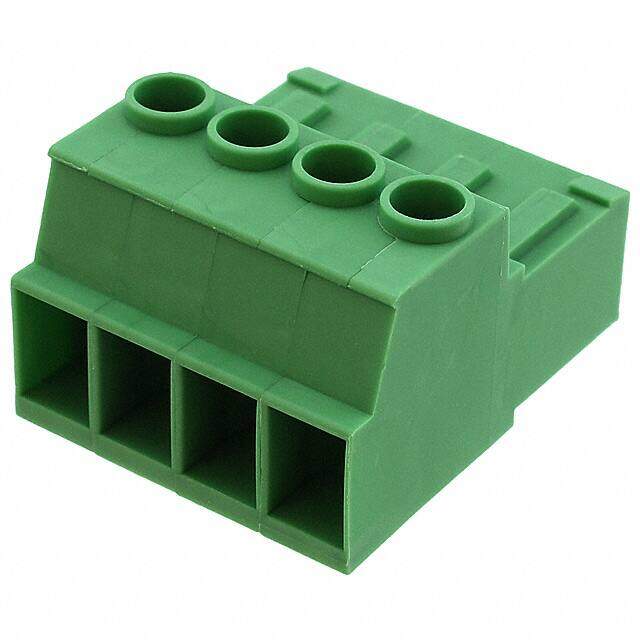

1709063 image
Favorite
1709063 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Terminal Blocks F 4 POS 7.62mm Screw RA Cable Mount 41A
PDF
/
Buying Options
Total Price: USD $11.65
Unit Price: USD $11.6512
≥1 USD $11.6512
≥10 USD $11.33
≥100 USD $10.58904
≥500 USD $9.741952
≥1000 USD $9.000675
≥3000 USD $8.577166
Inventory: 335
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 36.55mm
Length 30.48mm
Height 30.48mm

Technical

Screw Size M3
Number of Positions Per Level 4
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-10mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 4
Torque - Screw 0.7-0.8 Nm (6.2-7.1 Lb-In)
Wire Gauge or Range - AWG 8-24 AWG
Number of Decks 1
Wire Gauge (Min) 8 AWG
Wire Gauge (Max) 24 AWG
Current 41A
Number of Levels 1
Max Current Rating 41A
Max Supply Voltage 1kV
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 41A
Insulation Height 0.902 22.90mm
Orientation Right Angle
Pitch 0.300 7.62mm
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Number of Positions 4
Type Plug, Male Pins
Connector Type Plug, Screw
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON IPC
Published 2011
Packaging Bulk

Physical

Weight 1.200205kg
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
