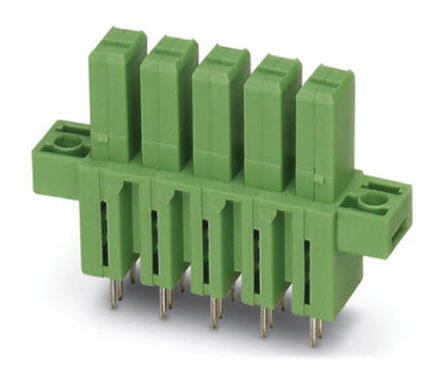

1708967
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 5 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $11.05
Unit Price: USD $11.0509
≥1 USD $11.0509
≥10 USD $10.425382
≥100 USD $9.835263
≥500 USD $9.278548
≥1000 USD $8.753342
Inventory: 1391
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 499.858792g
Technical
Packaging Bulk
Published 2011
Series COMBICON IPCV
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 5
Color Green
Number of Rows 1
Voltage - Rated 630V
Additional Feature PA, UL 94V-0
Pitch 0.300 7.62mm
Depth 12.8mm
Insulation Height 1.185 30.10mm
Current Rating 41A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.197 5.00mm
Max Current Rating 41A
Number of Levels 1
Current 5A
Contact Mating Finish Tin
Voltage - UL 600V
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 5
Safety Approval UL
Header Orientation Vertical
Dimensions
Length 53.32mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
