0398600502
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

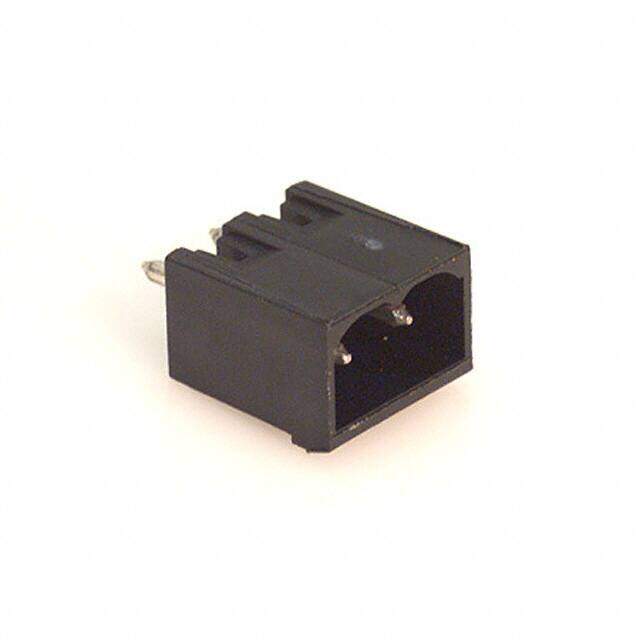

TERM BLOCK HDR 2POS VERT 5.08MM
PDF
/
Inventory: 7780
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Rated Voltage 300V
Header Orientation Vertical
Safety Approval UL; CSA
Number of Ways 2
Current - UL 15A
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.170 4.32mm
Termination Style Solder
Insulation Height 0.470 11.94mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature 94V-0
Number of Rows 1
Color Black
Number of Positions 2
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series Eurostyle 39860
Packaging Bulk
Operating Temperature 110°C
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Contact Material Brass
