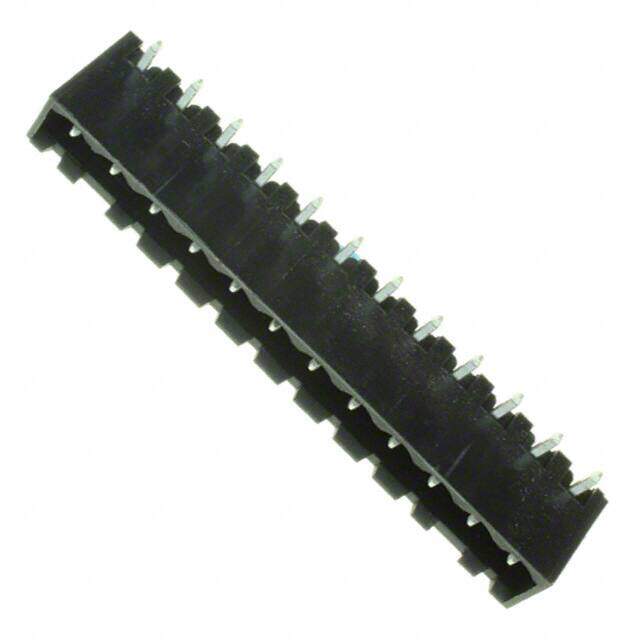

ELFH12210
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 12POS 5.08MM
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.7192
≥1 USD $2.7192
≥10 USD $2.05568
≥100 USD $1.905024
≥500 USD $1.712656
≥1000 USD $1.670944
≥3000 USD $1.462067
Inventory: 374
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2003
Series ELFH
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12.06mm
Insulation Height 0.319 8.10mm
Current Rating 15A
Termination Style Solder
Number of Contacts 12
Housing Color Black
Insulation Resistance 100GOhm
Voltage 300V
Max Current Rating 15A
Number of Levels 1
Current 15A
Number of Poles 12
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 15A
Positions Per Level 12
Header Orientation 90°, Right Angle
Number of Positions Per Level 12
Dimensions
Length 61.11mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
