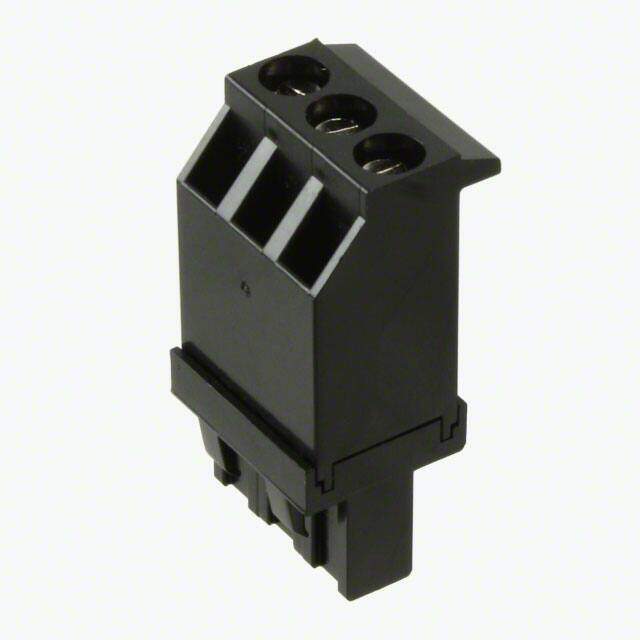

ELFF03230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 3POS 5.08MM
PDF
/
Buying Options
Total Price: USD $2.6
Unit Price: USD $2.596
≥1 USD $2.596
≥10 USD $1.96768
≥100 USD $1.823712
≥500 USD $1.639792
≥1000 USD $1.59984
≥3000 USD $1.399869
Inventory: 1048
Minimum: 1
-
+
Technical Details
Technical
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Type Plug, Female Sockets
Part Status Active
Feature Retention Latches (Wire Side)
Series ELFF
Published 2006
Packaging Bulk
Operating Temperature 105°C
Number of Positions Per Level 3
Wire Strip Length 7.87mm 12.45mm
Plug Wire Entry 90°
Positions Per Level 3
Torque - Screw 0.79 Nm (7.0 Lb-In)
Current - UL 15A
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Number of Poles 3
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Number of Circuits 3
Voltage 300V
Insulation Resistance 100GOhm
Housing Color Black
Number of Contacts 3
Termination Style Screw - Rising Cage Clamp
Current Rating 15A
Insulation Height 1.218 30.94mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 300V
Gender Female
Number of Rows 1
Color Black
Number of Positions 3
Physical
Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
