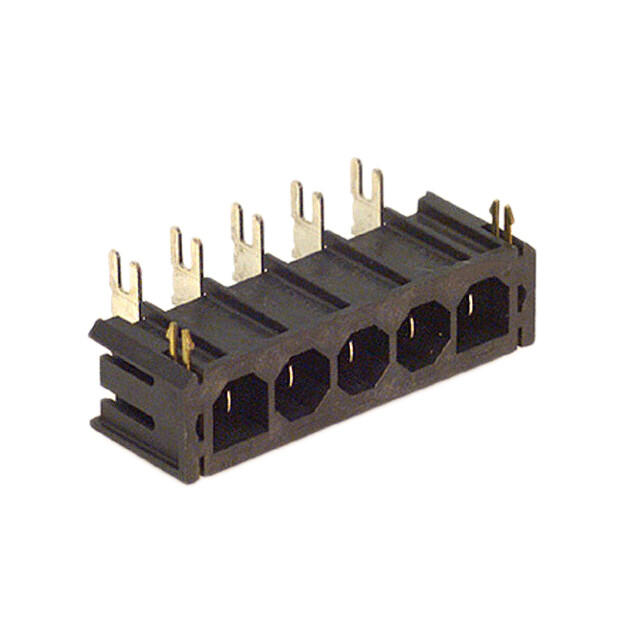

43160-3105
RoHS
/
Package SMC
Category Connectors, Interconnects / Blade Type Power Connectors
Description
CONN HDR 5POS 7.50MM R/A SLDR
PDF
/
Buying Options
Total Price: USD $3.13
Unit Price: USD $3.12863
≥1 USD $3.12863
≥10 USD $2.951535
≥100 USD $2.784467
≥500 USD $2.626856
≥1000 USD $2.478172
Inventory: 1880
Minimum: 1
-
+
Technical Details
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Package / Case SMC
Insulation Material Nylon
Shell Material GLASS FILLED POLYAMIDE46
Housing Material Thermoplastic
Technical
Packaging Bulk
JESD-609 Code e3
Pbfree Code yes
Number of Terminations 10
Termination Solder
ECCN Code EAR99
Connector Type RECTANGULAR POWER CONNECTOR
Max Operating Temperature 75°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Gender Male
Additional Feature SABRE
Fastening Type Ramp
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 600V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 7.49mm
Total Number of Contacts 5
Orientation Right Angle
Depth 19.79mm
Current Rating 18A
Number of Conductors ONE
Reliability COMMERCIAL
Lead Pitch 7.5mm
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Empty Shell NO
Contact Resistance 30mOhm
Insulation Resistance 1GOhm
Body/Shell Style RECEPTACLE
Number of Circuits 5
Number of Ports 1
Contact Pattern RECTANGULAR
Withdrawl Force-Min 2.224 N
Glow Wire Compliant Compliant
Dimensions
Diameter 7.5mm
Length 43.56mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
