OQ1175000000G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

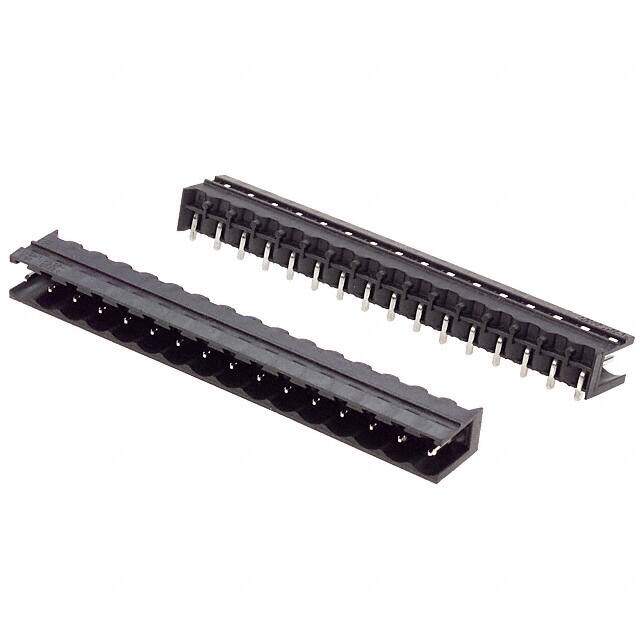

OQ ROHS3Compliant Mating Flange Tin Terminal Block Header, Male Pins, Shrouded (4 Side) Vertical 20A 300V 0.472 12.00mm
PDF
/
Inventory: 2266
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper
Mounting Type Through Hole
Housing Material Thermoplastic
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series OQ
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 11
Color Black
Pitch 0.197 5.00mm
Insulation Height 0.472 12.00mm
Termination Style Solder
Contact Tail Length 0.157 4.00mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 20A
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
