1774902001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

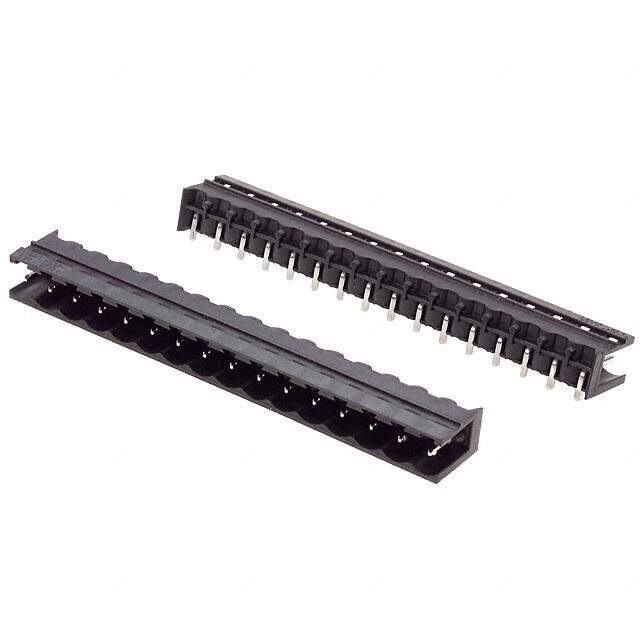

TERM BLOCK HDR 16POS 5.08MM
PDF
/
Inventory: 9792
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2008
Series Omnimate SL
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Connector Type Terminal Block
Type Header, Male Pins, Shrouded (2 Side)
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 300V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.200 5.08mm
Total Number of Contacts 16
Insulation Height 0.335 8.51mm
Current Rating 15A
Termination Style Solder
Approval Agency CSA, UR
UL Flammability Code 94V-0
Contact Tail Length 0.059 1.50mm
Number of Levels 1
Number of Poles 16
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 18.5A
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Current - IEC 27.5A
Hole Diameter 1.5 mm
Dimensions
Height 8.5mm
Length 81.3mm
Width 12mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
