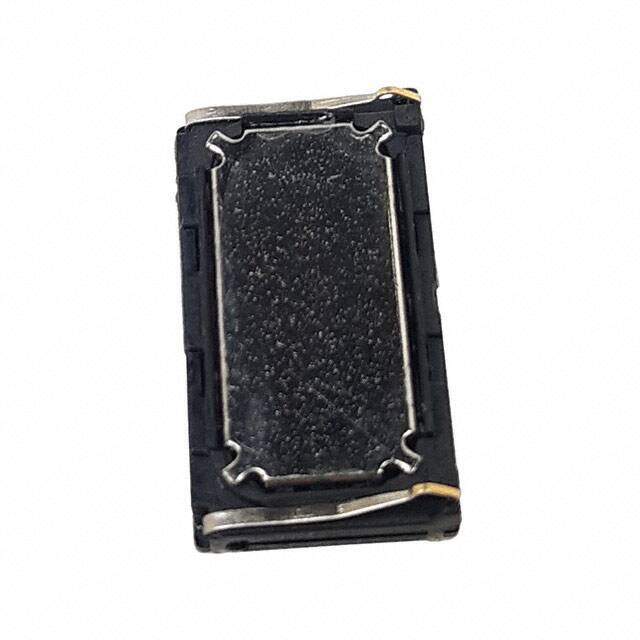

WSPH-1609S

Soberton Inc.
RoHS
RoHS RoHS compliant
Package /
Category Audio Products / Speakers
Description IP65 SPEAKER, 89DB SENSITIVITY,
PDF
/
Buying Options
Total Price: USD $2.65
Unit Price: USD $2.6488
≥1 USD $2.6488
≥10 USD $2.1956
≥100 USD $2.026464
≥500 USD $1.9041
≥1000 USD $1.786312
≥3000 USD $1.653344
Inventory: 180
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.157 4.00mm

Technical

Efficiency - Testing 500mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 89.00
Port Location Top
Power - Rated 500mW
Frequency Range 300Hz~5kHz
Power - Max 800mW
Frequency - Self Resonant 730Hz
Impedance 8Ohm
Ingress Protection IP67 - Dust Tight, Waterproof
Technology Magnetic
Type General Purpose
Termination Spring Type
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.630Lx0.354W 16.00mmx9.00mm
Operating Temperature -20°C~60°C

Physical

Material - Magnet Nd-Fe-B
Material - Cone Polyetheretherketone (PEEK)
Shape Rectangular

Supply Chain

Factory Lead Time 8 Weeks
