EM-23046-P16
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description

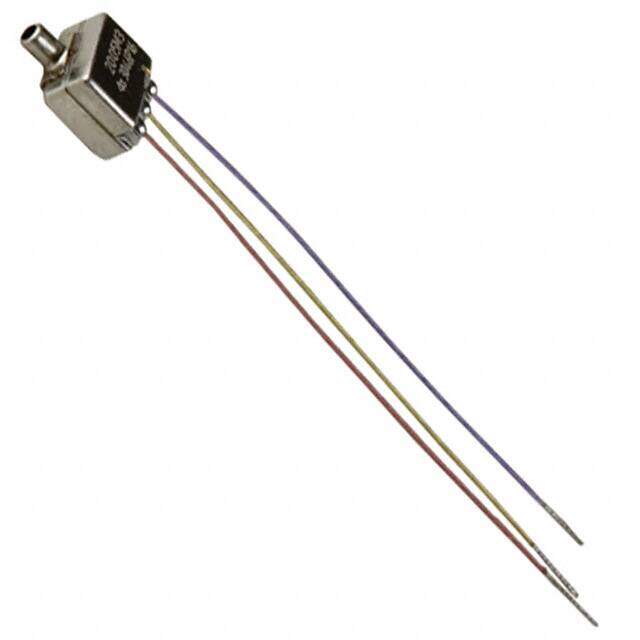

MICROPHONE COND ANALOG OMNI
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Height 3.61mm
Technical
Port Location Side
Sensitivity -56dB ±3dB @ 74dB SPL
Frequency Range 100Hz~10kHz
Voltage Range 1.3V~3V
Direction Omnidirectional
Impedance 4.4kOhm
Operating Supply Current 50μA
Output Type Analog
Frequency 5kHz
Current Rating 50μA
Depth 3.61mm
Voltage - Rated 1.3V
Type Electret Condenser
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.141Lx0.141W 3.57mmx3.57mm
Series EM
Published 2007
Packaging Bulk
Physical
Shape Square
Supply Chain
Factory Lead Time 6 Weeks
