GF0876M
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description

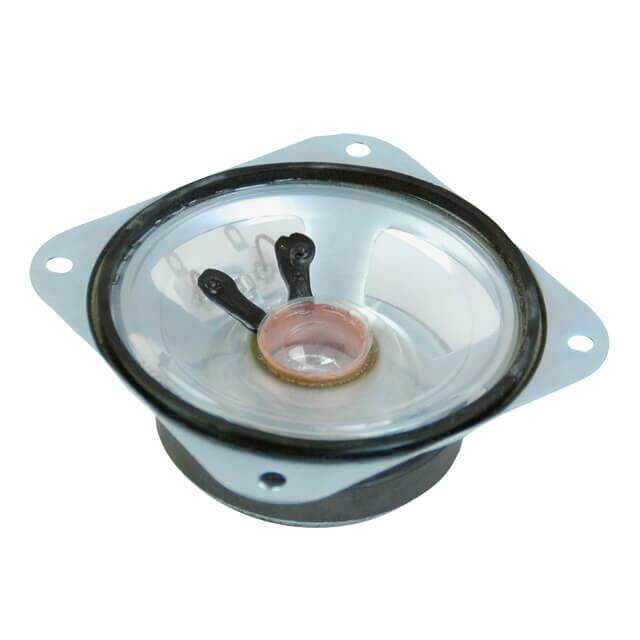

Speakers & Transducers speaker, 87 mm square, 34 mm deep, mylar, ferrite, 12 W, 8 O, 580 Hz, solder eyelets
PDF
/
Buying Options
Total Price: USD $5.95
Unit Price: USD $5.9488
≥1 USD $5.9488
≥10 USD $4.89016
≥100 USD $4.50208
≥500 USD $4.221184
≥1000 USD $3.951376
≥3000 USD $3.794525
Inventory: 1097
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 1.339 34.00mm
Technical
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 97.00
Port Location Top
Power - Rated 12W
Frequency Range 580Hz~18kHz
Power - Max 15W
Impedance 8Ohm
Technology Magnetic
Type General Purpose
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 3.425Lx3.425W 87.00mmx87.00mm
Series GF
Published 2015
Physical
Material - Magnet Ferrite
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Round, Square Frame
Supply Chain
Factory Lead Time 16 Weeks
