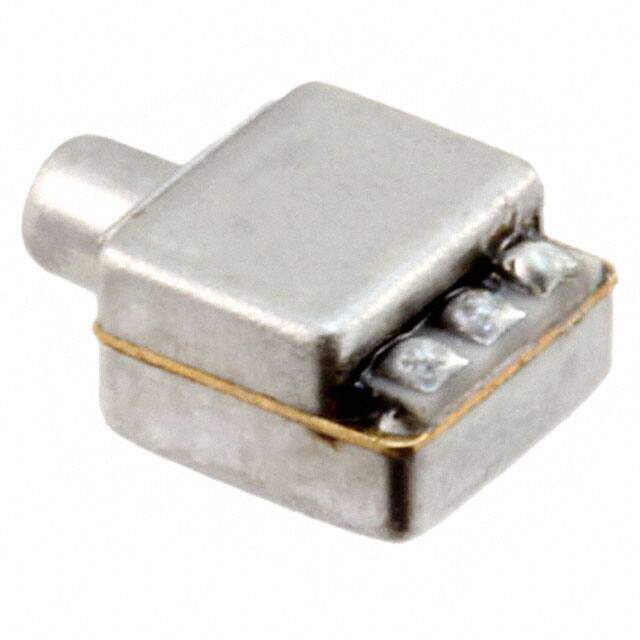

EM-24346-C36
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
Microphones Omni-Directional Microphone
PDF
/
Buying Options
Total Price: USD $16.75
Unit Price: USD $16.753917
≥1 USD $16.753917
≥200 USD $6.484413
≥500 USD $6.255969
≥1000 USD $6.143059
Inventory: 3533
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 2.21mm
Technical
Port Location Side
Sensitivity -52dB ±3dB @ 74dB SPL
Frequency Range 100Hz~5.5kHz
Direction Omnidirectional
Impedance 4.4kOhm
Operating Supply Current 50μA
Operating Supply Voltage 1.3V
Output Type Analog
Current Rating 50μA
Depth 2.21mm
Type Electret Condenser
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.141Lx0.141W 3.57mmx3.57mm
Series EM
Published 2012
Packaging Tray
Physical
Shape Square
Mount Solder
Supply Chain
Factory Lead Time 8 Weeks
