CMS-181325-078SP-67
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description

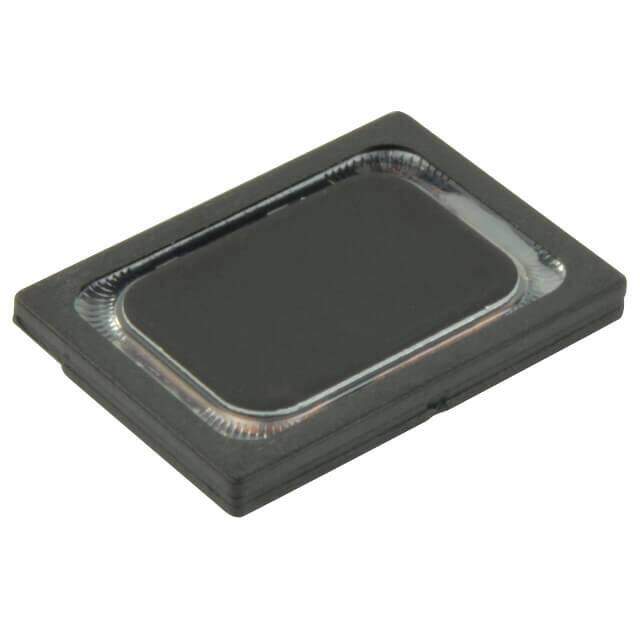

SPEAKER, 18 X 13 MM, 2.5 MM DEEP
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.7072
≥1 USD $1.7072
≥10 USD $1.41768
≥100 USD $1.309088
≥500 USD $1.23046
≥1000 USD $1.154736
≥3000 USD $1.075422
Inventory: 608
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Shape Rectangular
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Series CMS
Size / Dimension 0.709Lx0.512W 18.00mmx13.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Pads
Type General Purpose
Technology Magnetic
Ingress Protection IP67 - Dust Tight, Waterproof
Impedance 8Ohm
Frequency - Self Resonant 800Hz
Power - Max 1W
Frequency Range 500Hz~10kHz
Power - Rated 700mW
Port Location Top
Efficiency - dBA 93.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 700mW/100mm
Dimensions
Height Seated (Max) 0.098 2.50mm
Compliance
RoHS Status RoHS Compliant
