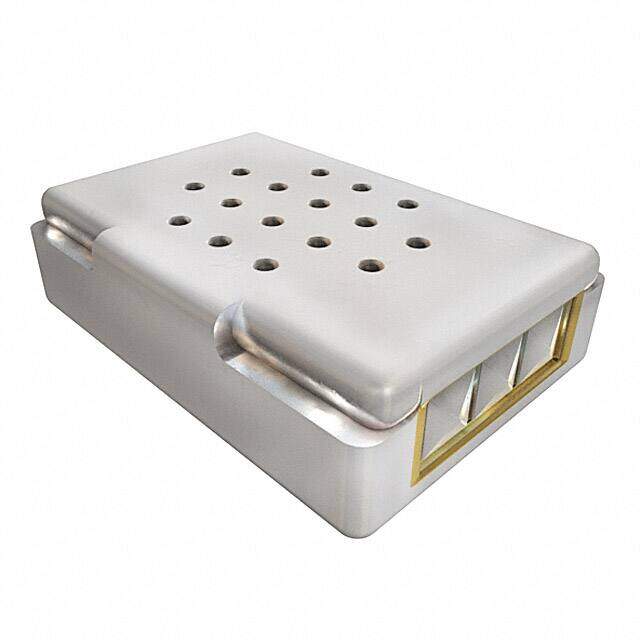

BW-21789-000
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Audio Products / Microphones
Description
MICROPHONE COND ANALOG NC -55DB
PDF
/
Buying Options
Total Price: USD $21.76
Unit Price: USD $21.758692
≥1 USD $21.758692
≥200 USD $8.420941
≥500 USD $8.124225
≥1000 USD $7.978493
Inventory: 1412
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Package / Case SMD/SMT
Shape Rectangular
Technical
Packaging Bulk
Published 2006
Series BW
Size / Dimension 0.310Lx0.218W 7.87mmx5.54mm
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type Electret Condenser
Voltage - Rated 1.3V
Depth 2.29mm
Current Rating 50μA
Frequency 4kHz
Output Type Analog
Operating Supply Current 50μA
Impedance 3.5kOhm
Direction Noise Cancelling
Voltage Range 1.3V~10V
Frequency Range 100Hz~4kHz
Sensitivity -55dB ±4dB @ 74dB SPL
Port Location Top
Dimensions
Height 2.29mm
Compliance
RoHS Status RoHS Compliant
