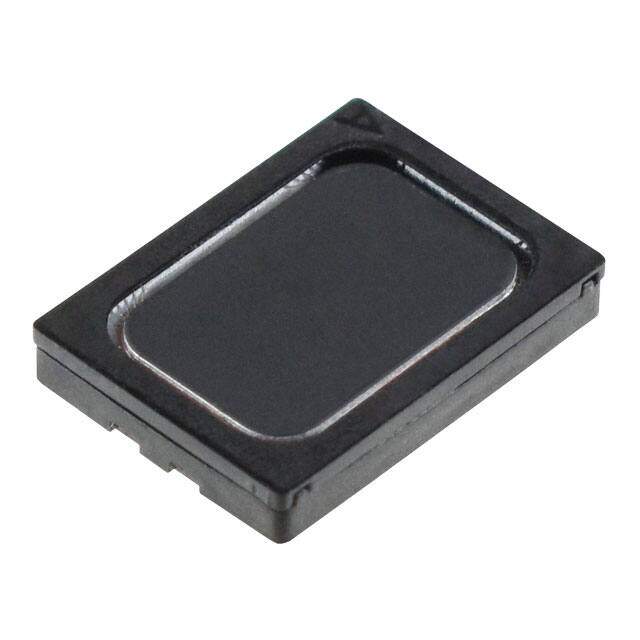

CMS-151103-16SP

CUI Devices
RoHS
RoHS RoHS compliant
Package /
Category Audio Products / Speakers
Description SPEAKER 15 X 11MM ENCLOSED
PDF
/
Buying Options
Total Price: USD $1.52
Unit Price: USD $1.5224
≥1 USD $1.5224
≥10 USD $1.26104
≥100 USD $1.165472
≥500 USD $1.095952
≥1000 USD $1.029072
≥3000 USD $0.953418
Inventory: 100
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.118 3.00mm

Technical

Distortion Rating 15% Max @ 800Hz ~ 1.2KHz, 0.1M, 2.05V; 10% Max @ 1.201Hz ~ 5KHz, 0.1M, 2.05V
Efficiency - Testing 700mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 93.00
Port Location Top
Power - Rated 700mW
Frequency Range 100Hz~20kHz
Power - Max 1W
Frequency - Self Resonant 600Hz
Impedance 6Ohm
Technology Magnetic
Type General Purpose
Termination Solder Pads
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.591Lx0.433W 15.00mmx11.00mm
Series CMS
Operating Temperature -20°C~70°C

Physical

Material - Magnet Nd-Fe-B
Material - Cone Polyetheretherketone (PEEK)
Shape Rectangular

Supply Chain

Factory Lead Time 5 Weeks
