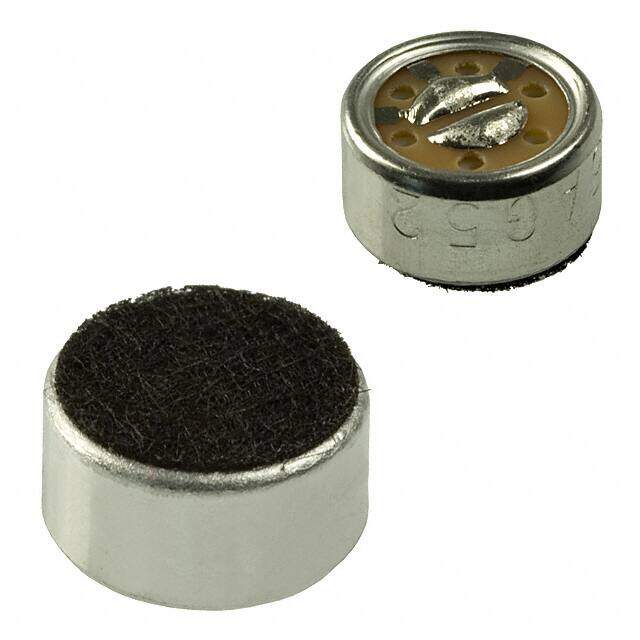

WM-55A103
RoHS
/
Package /
Category Audio Products / Microphones
Description
MIC COND ANLG UNI -47DB 9.7MM D
PDF
/
Buying Options
Total Price: USD $2.08
Unit Price: USD $2.083572
≥1 USD $2.083572
≥200 USD $0.832379
≥500 USD $0.803495
≥1000 USD $0.790366
Inventory: 2223
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height (Max) 0.197 5.00mm
Height 5mm
Diameter 9.7mm
Technical
S/N Ratio 60dB
Port Location Top
Sensitivity -47dB ±4dB @ 94dB SPL
Signal to Noise Ratio (SNR) 60 dB
Frequency Range 100Hz~12kHz
Voltage Range 1.5V~10V
Direction Unidirectional
Current - Supply 500μA
Impedance 680Ohms
Operating Supply Current 500μA
Max Supply Voltage 10V
Operating Supply Voltage 1.5V
Output Type Analog
Voltage - Rated DC 1.5V
Voltage - Rated 1.5V
Type Electret Condenser
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.382Dia 9.70mm
Series WM-55A103
Published 2004
Packaging Bulk
Physical
Shape Circular
Mount Solder Pad
Alternative Model
