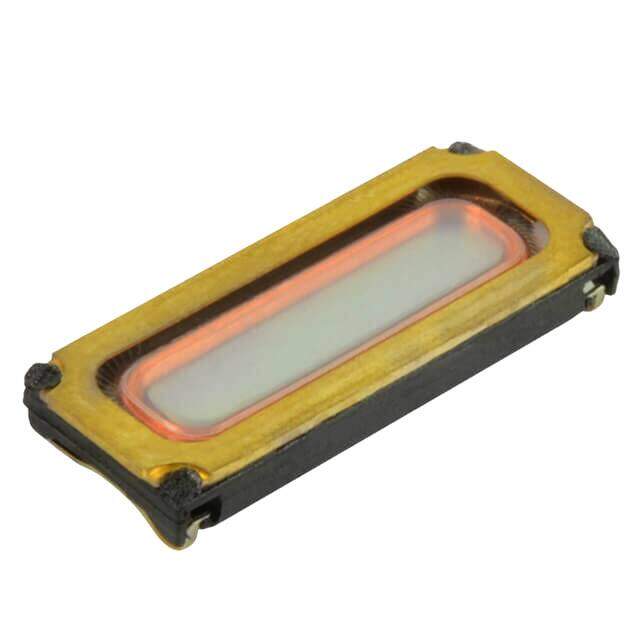

CMR-15062S-67
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER, 15 X 6 MM, 2 MM DEEP, M
PDF
/
Buying Options
Total Price: USD $1.9
Unit Price: USD $1.9008
≥1 USD $1.9008
≥10 USD $1.57256
≥100 USD $1.451648
≥500 USD $1.364
≥1000 USD $1.27952
≥3000 USD $1.18426
Inventory: 1171
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.079 2.00mm
Technical
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 117.00
Port Location Top
Power - Rated 20mW
Frequency Range 300Hz~7kHz
Power - Max 30mW
Frequency - Self Resonant 550Hz
Impedance 32Ohm
Ingress Protection IP67 - Dust Tight, Waterproof
Technology Magnetic
Type Receiver
Termination Spring Type
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.591Lx0.236W 15.00mmx6.00mm
Series CMR
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Rectangular
Supply Chain
Factory Lead Time 11 Weeks
