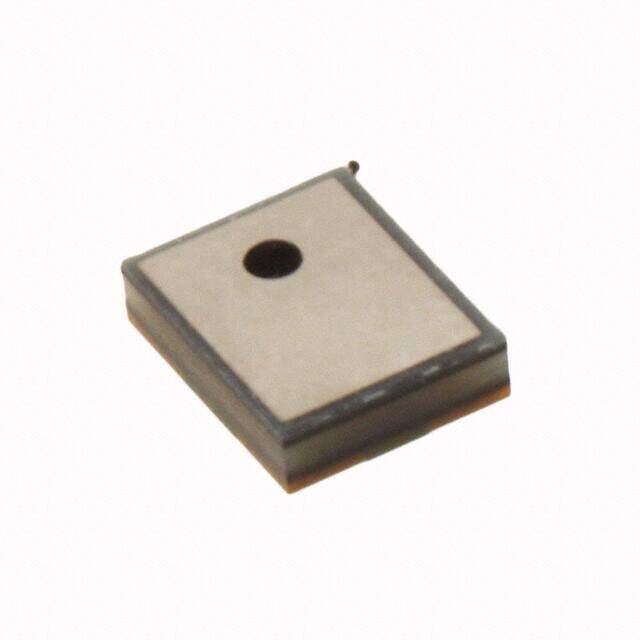

SPM0408HD5H-SB
RoHS
/
Package /
Category Audio Products / Microphones
Description
MIC MEMS ANALOG OMNI -22DB
PDF
/
Inventory: 1499
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.053 1.35mm
Width 3.76mm
Length 4.72mm
Height 1.35mm
Technical
S/N Ratio 59dB
Port Location Top
Sensitivity -22dB ±3dB @ 94dB SPL
Frequency Range 100Hz~10kHz
Voltage Range 1.5V~3.6V
Direction Omnidirectional
Current - Supply 350μA
Impedance 300Ohms
Operating Supply Current 350μA
Output Type Analog
Voltage - Rated 3.6V
Type MEMS (Silicon)
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.186Lx0.148W 4.72mmx3.76mm
Series SiSonic?
Published 2010
Packaging Tape & Reel (TR)
Physical
Shape Rectangular
