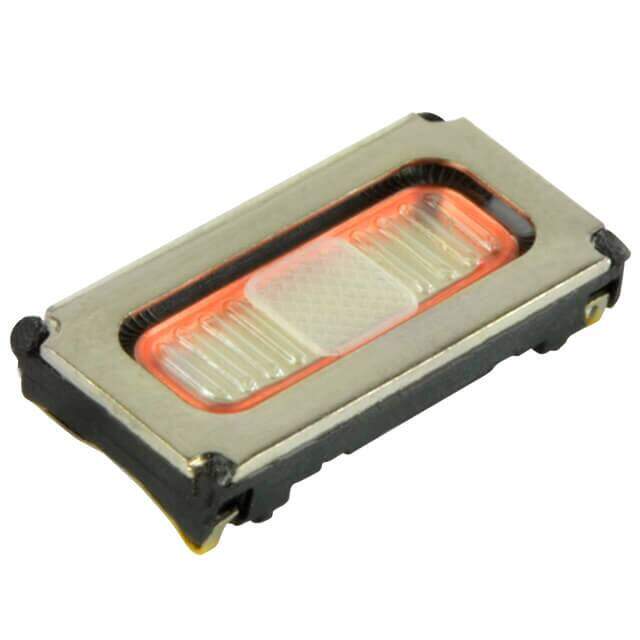

CMR-12062S-67
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
12 x 6 mm, Rectangular Frame, 0.002 W, 32 Ohm, Neodymium Magnet, Mylar Cone, IP67
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.079 2.00mm
Technical
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 117.00
Port Location Top
Power - Rated 20mW
Frequency Range 300Hz~7kHz
Power - Max 30mW
Frequency - Self Resonant 450Hz
Impedance 32Ohm
Ingress Protection IP67 - Dust Tight, Waterproof
Technology Magnetic
Type Receiver
Termination Spring Type
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.472Lx0.236W 12.00mmx6.00mm
Series CMR
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Rectangular
Supply Chain
Factory Lead Time 11 Weeks
