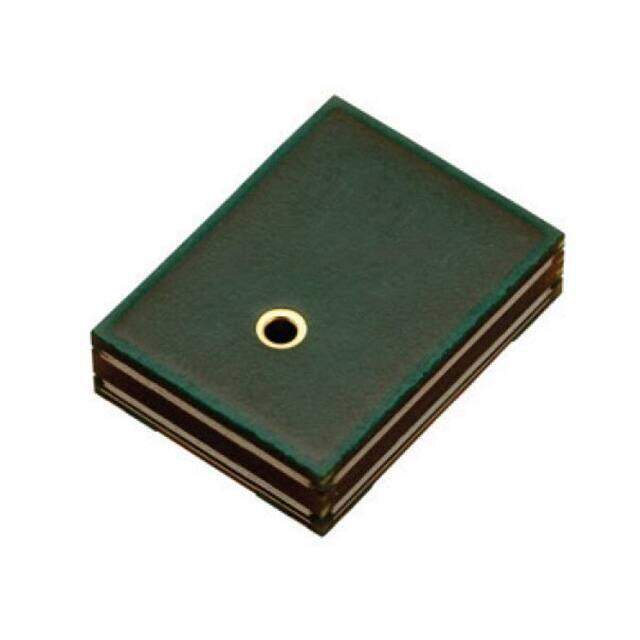

SPK0641HT4H-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
SILICON DIGITAL MICROPHONE
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.69825
≥1 USD $0.69825
≥10 USD $0.57285
≥100 USD $0.5548
≥500 USD $0.5377
≥1000 USD $0.51965
≥3000 USD $0.4655
Inventory: 326707
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Shape Rectangular
Technical
Packaging Tape & Reel (TR)
Series SiSonic? SPK
Size / Dimension 0.157Lx0.118W 4.00mmx3.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type MEMS (Silicon)
Output Type Digital, PDM
Current - Supply 800μA
Direction Omnidirectional
Voltage Range 1.6V~3.6V
Frequency Range 20Hz~20kHz
Sensitivity -26dB ±1dB @ 94dB SPL
Port Location Top
S/N Ratio 64.5dB
Dimensions
Height (Max) 0.043 1.10mm
Compliance
RoHS Status RoHS Compliant
