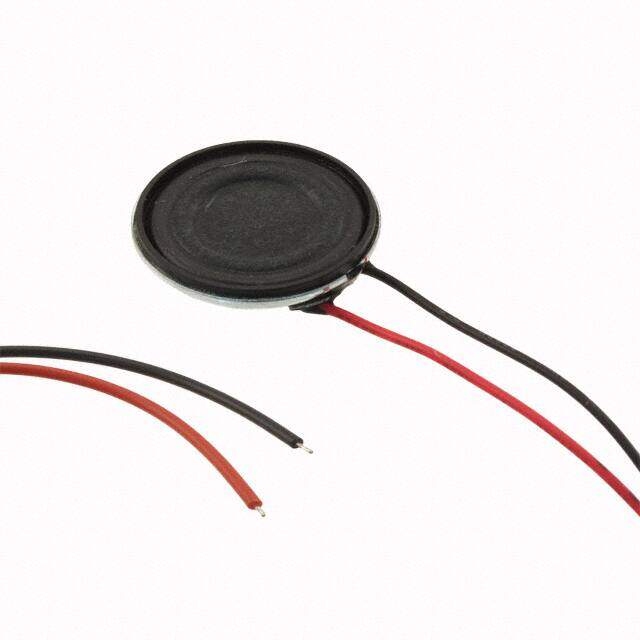

CLS0281-L152
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 1W TOP PORT 82DB
PDF
/
Buying Options
Total Price: USD $3.01
Unit Price: USD $3.0096
≥1 USD $3.0096
≥10 USD $2.48688
≥100 USD $2.417888
Inventory: 6323
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Shape Round
Material - Cone Paper
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Published 2011
Series CLS
Size / Dimension 1.102Dia 28.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Low Profile
Resistance 8Ohm
Power Rating 1W
Max Power Dissipation 3W
Technology Magnetic
Impedance 8Ohms
Frequency - Self Resonant 500Hz
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 82.00
Port Location Top
Power - Rated 1W
Frequency Range 500Hz~20kHz
Power - Max 3W
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.228 5.80mm
Height 6.1mm
