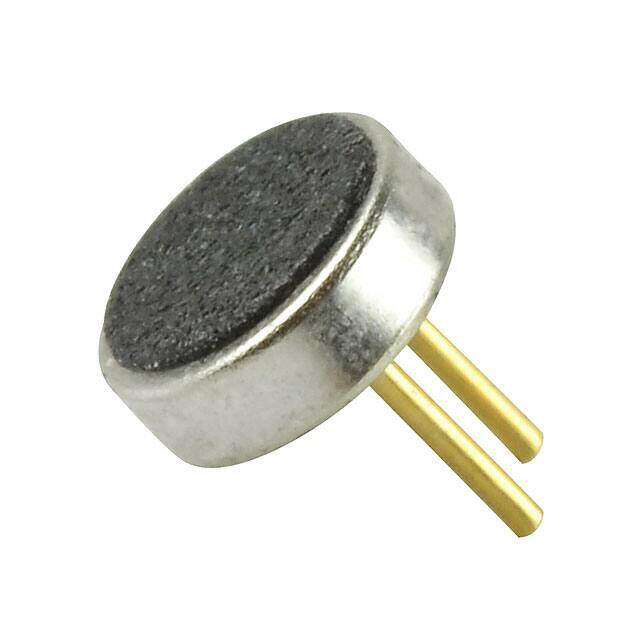

CMC-4012-40P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
4.0 mm, Omnidirectional, PCB Mount, 2.0 Vdc, Electret Condenser Microphone
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.7248
≥1 USD $1.7248
≥10 USD $1.4256
≥100 USD $1.330912
Inventory: 1057
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.053 1.35mm
Technical
S/N Ratio 58dB
Port Location Top
Sensitivity -40dB ±3dB @ 94dB SPL
Frequency Range 100Hz~20kHz
Voltage Range 2V~10V
Direction Omnidirectional
Current - Supply 500μA
Impedance 2.2kOhm
Output Type Analog
Voltage - Rated 2V
Type Electret Condenser
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.157Dia 4.00mm
Series CMC
Published 2017
Packaging Bulk
Physical
Shape Circular
Supply Chain
Factory Lead Time 14 Weeks
Alternative Model
