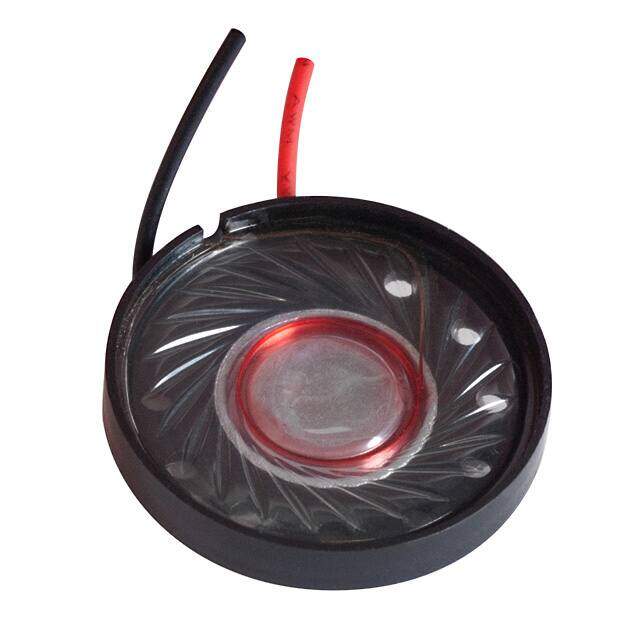

CLS0271M-L152
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 100MW TOP PORT 89DB
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.772
≥1 USD $2.772
≥10 USD $2.29504
≥100 USD $2.11728
≥500 USD $1.98836
≥1000 USD $1.864614
≥3000 USD $1.608578
Inventory: 1185
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Published 2011
Series CLS
Size / Dimension 1.063Dia 27.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Low Profile
Resistance 8Ohm
Power Rating 100mW
Max Power Dissipation 200mW
Technology Magnetic
Impedance 8Ohm
Frequency - Self Resonant 530Hz
Frequency Range 530Hz~20kHz
Power - Rated 100mW
Port Location Top
Efficiency - dBA 89.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 1W/500mm
Dimensions
Height 6.1mm
Height Seated (Max) 0.228 5.80mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
