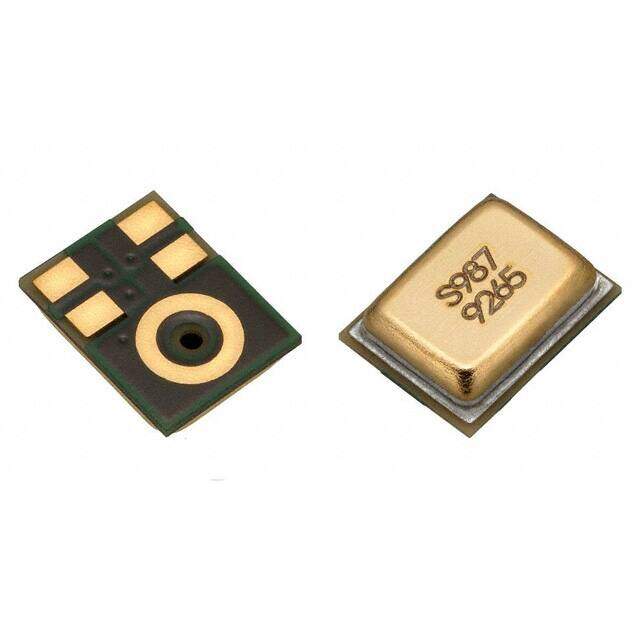

SPH0611LR5H-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MEMS MICROPHONE
PDF
/
Buying Options
Total Price: USD $1.16
Unit Price: USD $1.1616
≥1 USD $1.1616
≥10 USD $0.96712
≥100 USD $0.894784
≥500 USD $0.842336
≥1000 USD $0.791648
≥3000 USD $0.734342
Inventory: 59406
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 1.08mm
Technical
Port Location Bottom
Sensitivity -38dB ±1dB @ 94dB SPL
Signal to Noise Ratio (SNR) 65 dB
Frequency Range 100Hz~10kHz
Voltage Range 1.5V~3.6V
Direction Omnidirectional
Impedance 400Ohm
Operating Supply Current 185μA
Operating Supply Voltage 3.6V
Output Type Analog
Depth 1.08mm
Voltage - Rated 3.6V
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Type MEMS (Silicon)
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Size / Dimension 0.138Lx0.104W 3.50mmx2.65mm
Series SiSonic?
Published 2013
Packaging Tape & Reel (TR)
Physical
Shape Rectangular
Supply Chain
Factory Lead Time 8 Weeks
