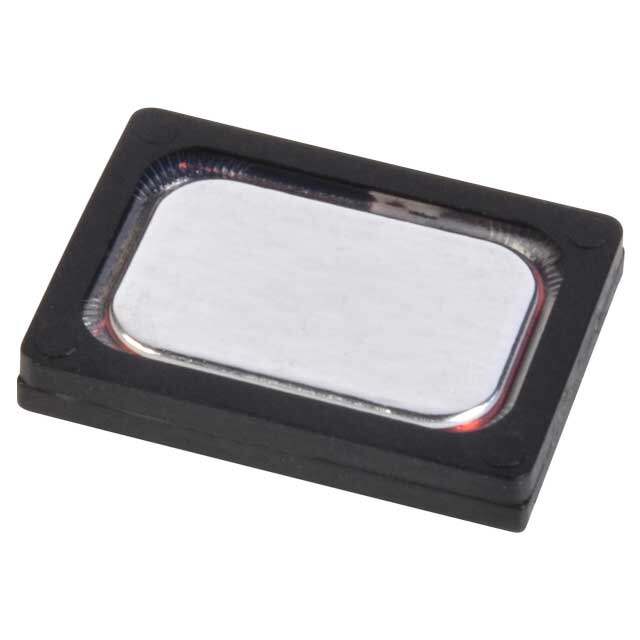

CDS-15118B

CUI Devices
RoHS
/
Package /
Category Audio Products / Speakers
Description SPEAKER 8OHM 700MW TOP PORT 86DB
PDF
/
Buying Options
Total Price: USD $7.13
Unit Price: USD $7.126421
≥1 USD $7.126421
≥200 USD $2.843741
Inventory: 7555
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Shape Rectangular
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B

Technical

Packaging Tray
Published 2016
Series CDS
Size / Dimension 0.591Lx0.433W 15.00mmx11.00mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type General Purpose
Power Rating 700mW
Max Power Dissipation 1W
Technology Magnetic
Impedance 8Ohms
Frequency - Self Resonant 500Hz
Power - Max 1W
Frequency Range 400Hz~20kHz
Power - Rated 700mW
Port Location Top
Efficiency - dBA 86.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 500mW/100mm

Dimensions

Height 3.1mm
Height Seated (Max) 0.118 3.00mm
Length 15mm
Width 11mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
