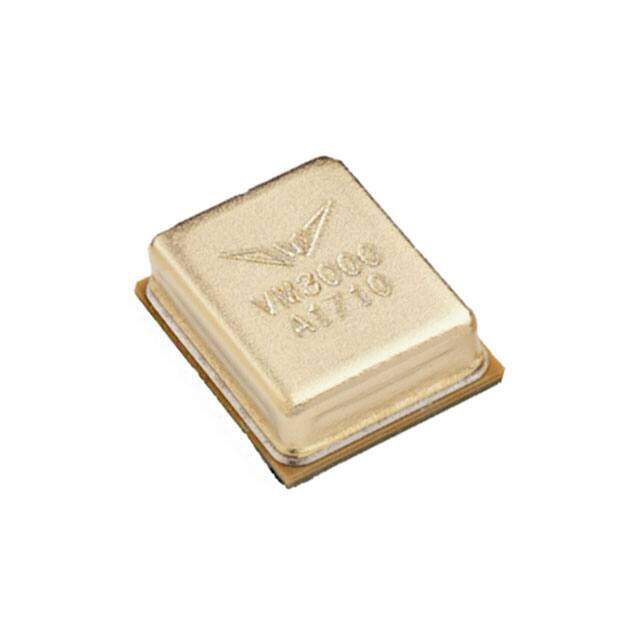

VM3000
RoHS
/
Package /
Category Audio Products / Microphones
Description
MICROPHONE MEMS DIGITAL PDM OMNI
PDF
/
Inventory: 8807
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP57 - Dust Protected, Waterproof
Dimensions
Height (Max) 0.051 1.30mm
Technical
S/N Ratio 62dB
Port Location Bottom
Sensitivity -26dB ±1dB @ 94dB SPL
Frequency Range 20Hz~8kHz
Voltage Range 1.6V~3.6V
Direction Omnidirectional
Current - Supply 775μA
Output Type Digital, PDM
Voltage - Rated 1.8V
Type MEMS (Silicon)
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.138Lx0.104W 3.50mmx2.65mm
Packaging Tape & Reel (TR)
Physical
Shape Rectangular
