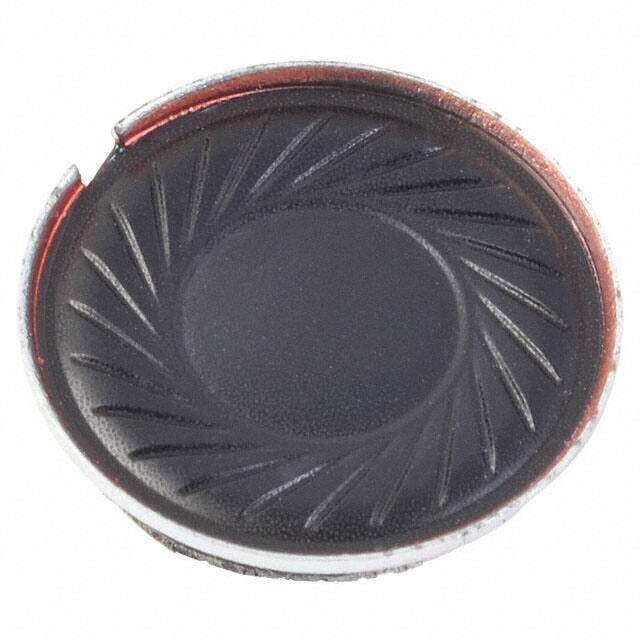

CDM-15008 image
Favorite
CDM-15008 image
Favorite

CDM-15008

CUI Devices
RoHS
/
Package /
Category Audio Products / Speakers
Description SPEAKER 8OHM 250MW TOP PORT 87DB
PDF
/
Buying Options
Total Price: USD $4.47
Unit Price: USD $4.471737
≥1 USD $4.471737
≥200 USD $1.784231
≥500 USD $1.725151
≥1000 USD $1.696267
Inventory: 4943
Minimum: 1
-
+

Technical Details

Physical

Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B

Technical

Packaging Tray
Published 2011
Series CDM
Size / Dimension 0.591Dia 15.00mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Spring Type
Type General Purpose
Resistance 8Ohm
Power Rating 250mW
Max Power Dissipation 500mW
Technology Magnetic
Impedance 8Ohm
Frequency - Self Resonant 900Hz
Frequency Range 720Hz~20kHz
Power - Rated 250mW
Port Location Top
Efficiency - dBA 92.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 300mW/100mm

Dimensions

Height 5.1mm
Height Seated (Max) 0.138 3.50mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
