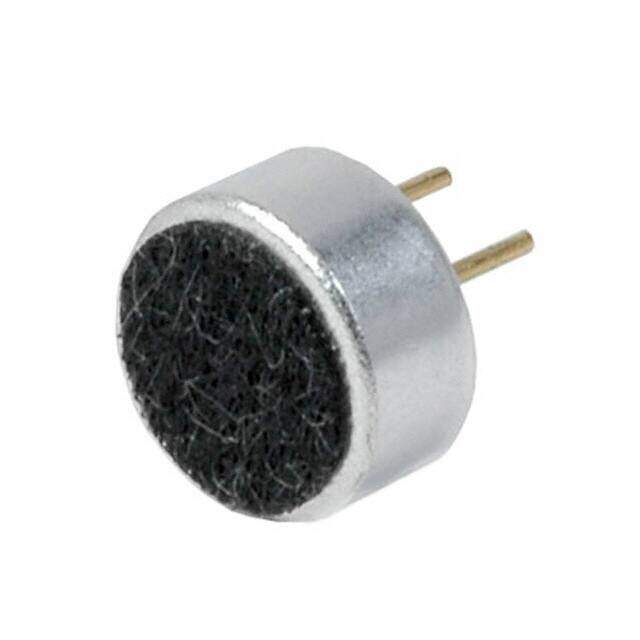

CMC-2742PBJ-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -42DB 6MM D
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.968
≥1 USD $0.968
≥10 USD $0.80784
≥100 USD $0.746944
≥500 USD $0.7216
Inventory: 1289
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Shape Circular
Technical
Packaging Bulk
Published 2012
Size / Dimension 0.236Dia 6.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Electret Condenser
Voltage - Rated 10V
Output Type Analog
Operating Supply Current 400μA
Impedance 2.2kOhms
Current - Supply 400μA
Direction Omnidirectional
Voltage Range 2V~10V
Frequency Range 100Hz~20kHz
Sensitivity -42dB ±3dB @ 94dB SPL
Port Location Top
S/N Ratio 58dB
Dimensions
Height 2.9mm
Height (Max) 0.114 2.90mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
