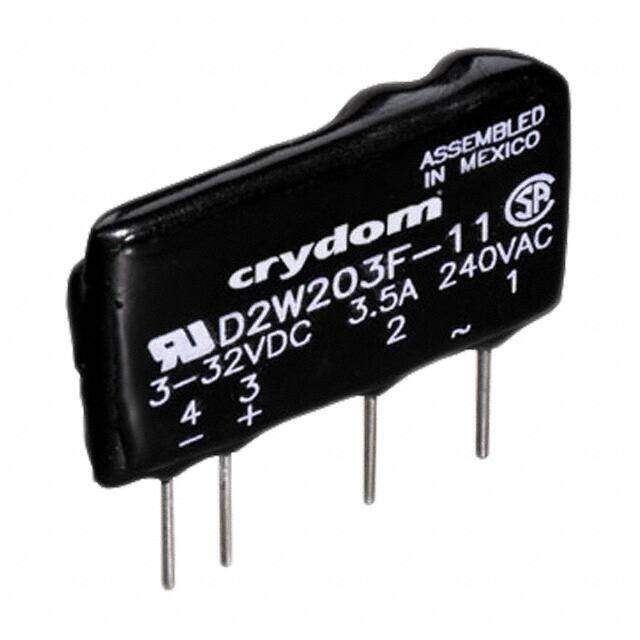

D2W203F-11
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP
Category Relays / Solid State Relays
Description
CRYDOM D2W203F11Solid State Relay, D2W Series, SIP, SPST-NO, 3.5 A, PCB, Through Hole, 0 VDC, 200 VDC
PDF
/
Buying Options
Total Price: USD $24.45
Unit Price: USD $24.4464
≥1 USD $24.4464
≥10 USD $23.2848
≥100 USD $22.2288
≥500 USD $21.568976
Inventory: 329
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 29.9mm
Length 43.2mm
Height 29.9mm
Technical
Min Supply Voltage (DC) 0V
Isolation Voltage 4kV
Max Supply Voltage (DC) 200V
Load Current 3.5A
Input Current 3mA
Max Input Current 3mA
Voltage - Load 24V~280V
Relay Type Relay
Max Input Voltage 32V
Max Surge Current 70A
Max Output Voltage 280V
Max Voltage Rating (DC) 200V
Throw Configuration SPST
Output Current 3.5A
Voltage - Input 3V~32VDC
Circuit SPST-NO (1 Form A)
Operating Supply Voltage 280V
Max Output Current 3.5A
Output Type AC, Zero Cross
Output Voltage 280V
Approval Agency CE, CSA, UL
Termination Style PC Pin
Current Rating 3.5A
Depth 11.9mm
Capacitance 10pF
Voltage - Rated 280V
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series D2W
Published 2008
Packaging Bulk
Physical
Supplier Device Package 4-SIP
Number of Pins 4
Package / Case 4-SIP
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 6 Weeks

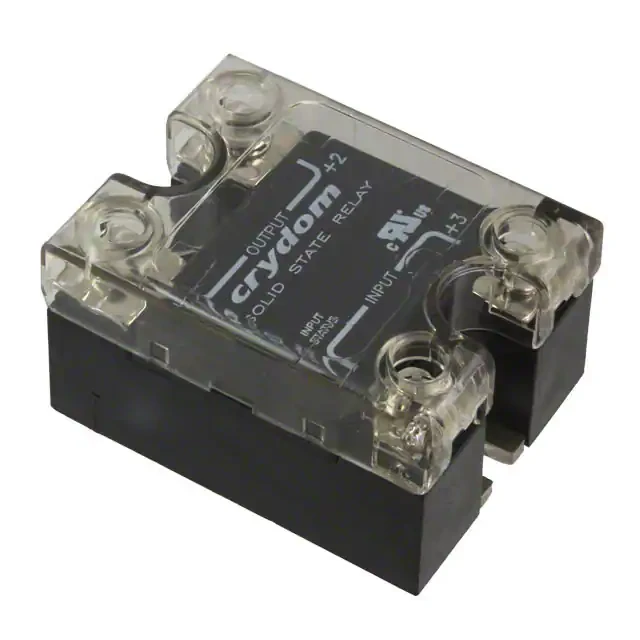

Alternative Model
