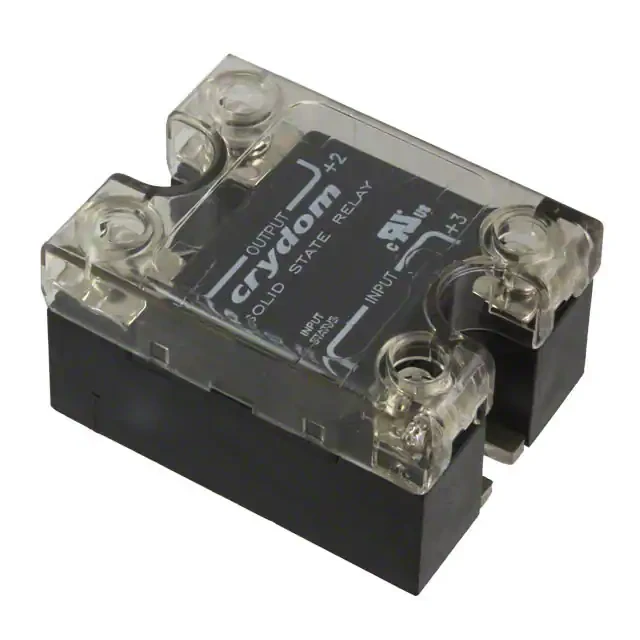

DC200A40C
RoHS
/
Package Hockey Puck
Category Relays / Solid State Relays
Description
RELAY SSR DC OUT 40A 90-140VAC
PDF
/
Buying Options
Total Price: USD $285.47
Unit Price: USD $285.469099
≥1 USD $285.469099
≥200 USD $113.904578
≥500 USD $110.098481
≥1000 USD $108.217095
Inventory: 8788
Minimum: 1
-
+
Technical Details
Physical
Mount Chassis Mount, Panel
Mounting Type Chassis Mount
Package / Case Hockey Puck
Number of Pins 4
Technical
Packaging Bulk
Published 2012
Series PowerPlus DC
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Resistance 16mOhm
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Voltage - Rated DC -150V
Current Rating 40A
Termination Style Screw Terminal
Approval Agency CE, UL
Output Type DC
Circuit SPST-NO (1 Form A)
Voltage - Input 90V~140VAC
Throw Configuration SPST
Relay Type Relay
Voltage - Load 1V~150V
On-State Resistance (Max) 16mOhms
Load Current 40A
Compliance
RoHS Status RoHS Compliant
