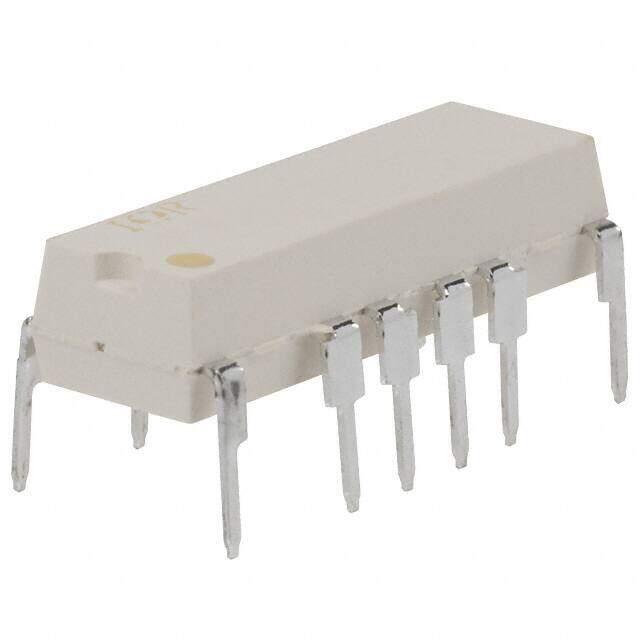

PVR3301NPBF
RoHS
/
Package 16-DIP (0.300, 7.62mm), 10 Leads
Category Relays / Solid State Relays
Description
IC RELAY PHOTOV 300V 165MA 16DIP
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.14795
≥1 USD $2.14795
≥10 USD $1.7632
≥100 USD $1.7081
≥500 USD $1.653
≥1000 USD $1.5979
Inventory: 1253
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Isolation Voltage 1.5kV
Load Current 165mA
Input Current 25mA
Max Input Current 25mA
On-State Resistance (Max) 24Ohms
RMS Current (Irms) 165mA
Voltage - Load 0V~300V
Relay Type Relay
Max Output Voltage 300V
Forward Current 25mA
Throw Configuration DP, DPST
Output Current 165mA
Voltage - Input 1.2VDC
Circuit DPST-NO (2 From A) x 2
Output Type AC, DC
Termination Style PC Pin
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 24Ohm
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series PVR, HEXFET?
Published 2009
Packaging Tube
Physical
Supplier Device Package 16-DIP
Number of Pins 16
Package / Case 16-DIP (0.300, 7.62mm), 10 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
