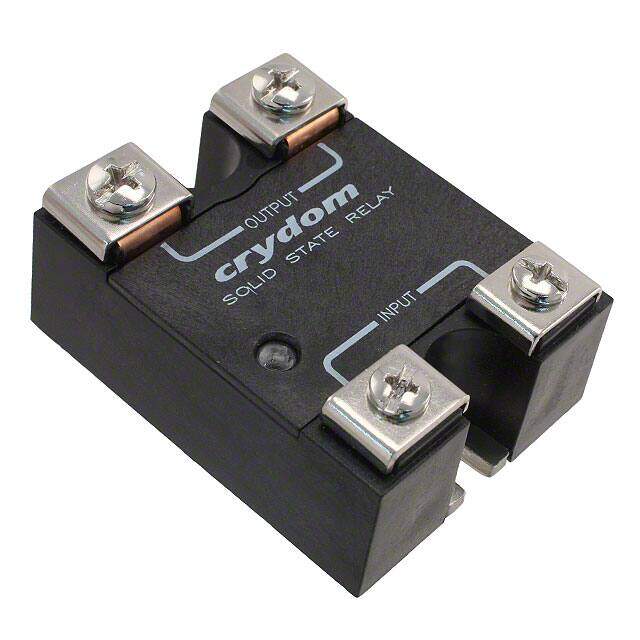

DC400A10
RoHS
/
Package Hockey Puck
Category Relays / Solid State Relays
Description
SSR RELAY SPST-NO 10A 1-300V
PDF
/
Inventory: 7367
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Package / Case Hockey Puck
Number of Pins 4
Technical
Packaging Bulk
Published 2011
Series PowerPlus DC
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Resistance 230mOhm
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Termination Style Screw Terminal
Output Type DC
Max Output Current 10A
Circuit SPST-NO (1 Form A)
Voltage - Input 90V~140VAC
Throw Configuration SPST
Max Output Voltage 300V
Relay Type Relay
Voltage - Load 1V~300V
On-State Resistance (Max) 155mOhm
Max Input Current 13mA
Compliance
RoHS Status RoHS Compliant
