32-450001-11-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors - Adapters
Description

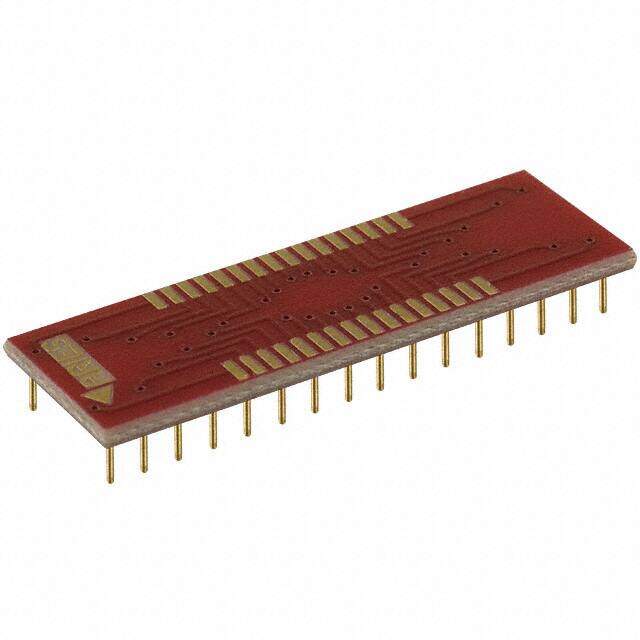

SOCKET ADAPTER SOJ TO 32DIP 0.4
PDF
/
Buying Options
Total Price: USD $255.69
Unit Price: USD $255.691214
≥1 USD $255.691214
≥195 USD $102.022833
≥495 USD $98.613232
≥1005 USD $96.928781
Inventory: 8243
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mounting Type Through Hole
Number of Pins 32
Contact Material - Post Brass
Board Material FR4 Epoxy Glass
Technical
Published 2007
Series Correct-A-Chip? 450001
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Additional Feature SOCKET ADAPTER
Contact Finish - Mating Gold
Pitch - Mating 0.050 1.27mm
Number of Contacts 32
Device Socket Type IC SOCKET
Termination Post Length 0.125 3.18mm
Pitch - Post 0.100 2.54mm
Convert From (Adapter End) SOJ
Convert To (Adapter End) DIP, 0.4 (10.16mm) Row Spacing
Dimensions
Height 1.58mm
Length 40.6mm
Contact Finish Thickness - Post 10.0μin 0.25μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
