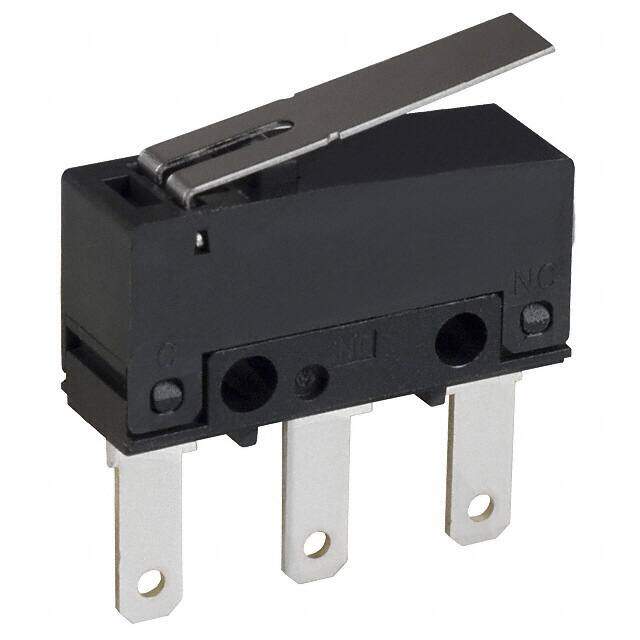

SS-3GLPT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.9064
≥1 USD $0.9064
≥10 USD $0.85448
≥100 USD $0.82016
≥500 USD $0.78584
≥1000 USD $0.75174
≥3000 USD $0.601577
Inventory: 11780
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Length 19.8mm
Technical
Release Force 5.099gf
Operating Position 0.345 (8.8mm)
Differential Travel 0.031 (0.8mm)
Overtravel 0.040 (1.0mm)
Contact (DC) Max Rating R Load 3A@30VDC
Contact Current(AC)-Max 3A
Operating Force 51gf
Contact Current Rating 3A
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 30V
Number of Poles 1
Electrical Life 100,000 Cycles
Max Current Rating 3A
Max Voltage Rating (AC) 125V
Contact Current(DC)-Max 3A
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Straight
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Reach Compliance Code unknown
Depth 6.4mm
Ingress Protection IP40
Orientation Straight
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
HTS Code 8536.50.70.00
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series SS-P
Published 2004
Packaging Tray
Operating Temperature -25°C~85°C
Physical
Actuator Material Stainless Steel
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Contact Material Silver
Supply Chain
Factory Lead Time 11 Weeks
