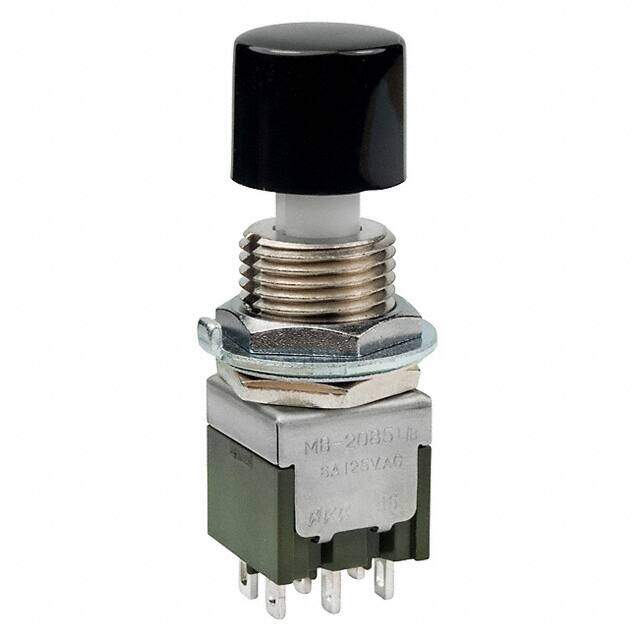

MB2085SB1W01-DA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 6A 125V
PDF
/
Inventory: 1528
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Actuator Material Brass
Terminal Material COPPER ALLOY
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2005
Series MB2000
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Number of Positions 2
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Orientation Vertical
Depth 13.2mm
Reach Compliance Code not_compliant
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 12.50mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 250V
Max Current Rating 6A
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 25,000 Cycles
Max Voltage Rating (DC) 30V
Mechanical Life 100,000 Cycles
Illumination Type Illuminated
Contact Current(AC)-Max 3A
Contact Timing SLOW-MAKE/-BREAK
Solderability WAVE
Dimensions
Length 13.2mm
Body Height 43.9674mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
